Product

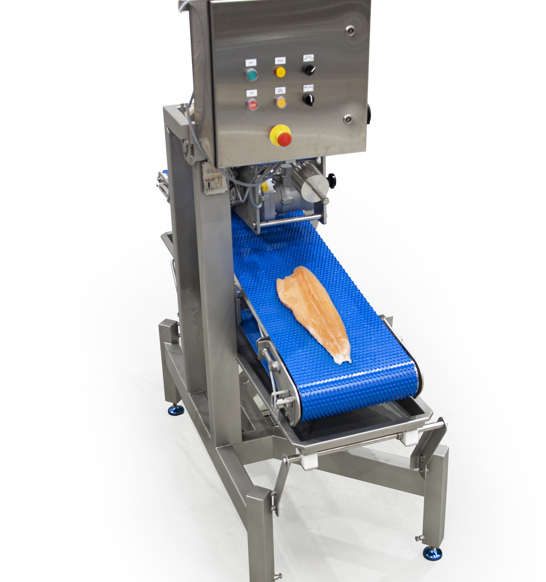

Pinbone Remover MS 2610

High-quality basic edition pinboner

  • Gentle, reliable pinboning
  • Quick speed and pressure adjustment
  • Easy-to-clean design
  • Small footprint

Information

High-quality pinboning

The MS 2610 Pinbone Remover is a lighter version of our renowned standard pinboner MS 2612. It is designed according to the same principles, ensuring high-quality pinbone removal, and it can run at the same speed as the MS 2612 to give maximum capacity.

Manual adjustments

There are three pre-set speeds so the pinbone roller can adapt to the varying condition of the fish, and the pressure of the pinbone heads is easily adjusted by a weight bar. The MS 2610 is available as a single-lane and dual-lane machine.

Fast and accurate

The MS 2610’s unique combination of accuracy and speed results in high yield and output, with the best pinboning quality often achieved at a belt speed of 4-5 m/min.

  • Up to 18 fillets per minute, per lane
  • Three pre-set speeds for the pinbone roller
  • Quick-release system on conveyors

Drip tray and filter for collecting bones and offal (optional)

Specifications

  Single lane Dual lane
Capacity Up to 18 fillets/minute * Up to 36 fillets/minute *
Power consumption 0.3-0.4 kW 0.3-0.4 kW
Water consumption 5 liters/minute 10 liters/minute
Electricity 220-240V + PE 50/60Hz 220-240V + PE 50/60Hz
Air supply Not required Not required
Dimensions W x L 710 x 1650 mm 1000 x 1650 mm
Weight 180 kg 300 kg

* Depending on fish size and quality

Versions

MS 2610.10 MS 2610.20
Single lane Dual lane

Service

Marel offers a range of service solutions to prevent failures, maximize performance or in case of unexpected breakdowns remote or onsite assistance.

Marel has offices in 30 countries across all regions, and a global network of highly skilled professionals that provide remote as well as onsite service support. We provide quality spare parts and customized service agreements for our customers to ensure optimal performance of Marel equipment.

Downloads

Title Description
Title Pinbone Remover Brochure Size (3.3MB) Document Download PDF
