Product

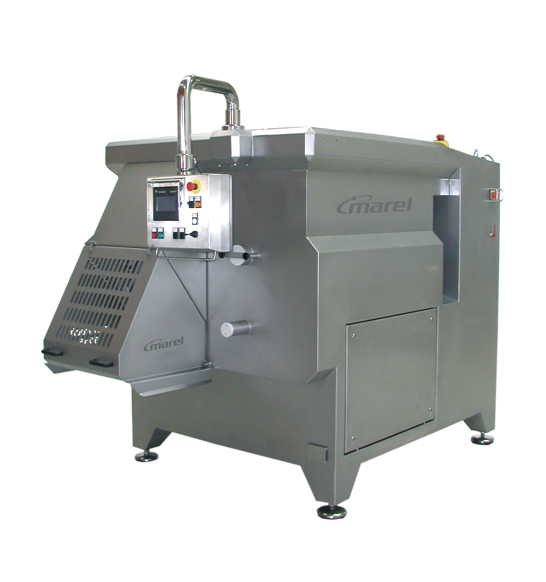

SPEEDmix double shaft intermeshing mixing system

  • Meets the strictest hygiene requirements in the industry
  • Pneumatically operated front discharge gate for a quick outlet
  • Automatic preset mixing programs and manual control

Information

SPEEDmix with double shaft intermeshing mixing system is specifically designed for industrial use. The paddles/wings are overlapping which ensures a quick, gentle and homogeneous mixing process.

As a standard, the machines are equipped with a pneumatically operated front discharge gate ensuring a quick outlet.

The electric control unit is based on panel view PLC system which gives the operator easy access to choose automatic preset mixing programs or run it manually. As optional extras, Marel offers a wide range of equipment such as CO/N2 injection etc. (Please see list below)

The Marel mixers are specifically designed to meet the strictest hygiene requirements in the industry. Paddles and machine housing are made from heavy duty AISI 304 stainless steel. The surface is smooth, the design fully welded and there are no horizontal surfaces, hidden corners, bolts or nuts.

The mixers can be stand alone machines or be part of an integrated processing line.

Specifications

Motor starter: Soft starter / Freq. converter
Voltage: 3x400V - 50 c/s or as required
Control voltage: 24V DC
Pressure air: 7 bar (dry air)
Materials: Stainless steel AISI 304, bead blasted

The machine is designed in accordance with CE standards.

Versions

Machine code Gross tank volume Mixing volume Mixer motor Machine weight
PM3043 1000 l 700 l 7,5 kW 1750 kg
PM3045 1500 l 1200 l 15,0 kW 2250 kg
PM3046 2000 l 1700 l 22,0 kW 2550 kg
PM3047 3000 l 2200 l 30,0 kW 3250 kg
PM3048 4000 l 2700 l 30,0 kW 3500 kg

Accessories

Optional features
  • Swing-away arm for control panel
  • CO/N2 injecting system
  • Steam injecting system
  • Water dosing system
  • Plate lid (hinged or sliding)
  • Electronic weighing system
  • Temperatur sensor
  • Inspection platform

Service

Marel offers a range of service solutions to prevent failures, maximize performance or in case of unexpected breakdowns remote or onsite assistance.

Marel has offices in 30 countries across all regions, and a global network of highly skilled professionals that provide remote as well as onsite service support. We provide quality spare parts and customized service agreements for our customers to ensure optimal performance of Marel equipment.
