Product

StripCutter/Splitter

Easy-to-use high speed portioner for fixed-sized portions

  • Versatile portioning machine for many applications
  • Phenomenal cutting quality
  • Only one operator required
  • Maximum profit thanks to rapid payback

Information

Strip cutting made easy

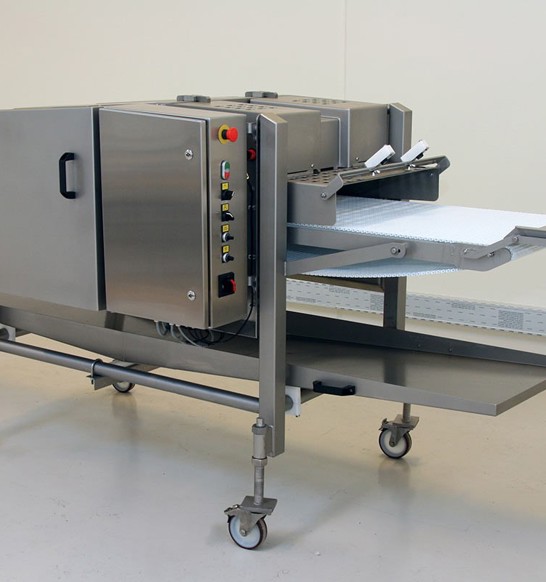

The Marel StripCutter is an easy-to-use portioning machine that cuts fixed-sized portions at high speed.The portioing machine provides a range of cutting options as the StripCutter can cut products into strips, splits, steaks or diced portions.

StripSplitter

The StripCutter can also be quickly and easily turned into a StripSplitter for splitting tenders, with only a few modifications. The principal difference is that the belt runs straight through the machine, so that the products retain their position on the belt during cutting. There are also fewer blades on the shaft (max 4).

  • Available in 600 mm or 1000 mm belt widths
  • With adjustable cutting blades, the minimum distance between blades is 50 mm (option on 600 mm and 1000 mm models)
  • With fixed cutting blades, the minimum distance between blades is 10 mm
  • Moving cutting roller and product holder preventing product movement during cutting
  • Fixed pointers for accurate product infeed positioning - laser or pins
  • Continuous product flow - belt speed up to 30 m per minute
  • Multiple products can be cut using the same StripCutter configuration
  • High operator safety - no open cutting areas

Specifications

Option/Model 600 600 1000 1000
Knife system: Fixed Adjustable Fixed Adjustable
Minimum split (mm): 6-7* 45 6-7* 45
Maximum number of blades: 58 15 98 25
Maximum product height: 70 70 70 70
Conveyor speed (m/min): 0-30 0-30 0-30 0-30
Rated voltage: 230V+PE 230V+PE 230V+PE 230V+PE
Rated frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Electrical consumption: 2 kW 2 kW 2.5 kW 2.5 kW
Water connection: 1/2 " 1/2 " 1/2 " 1/2 "
Water consumption 5 bar: 2 l/min 2 l/min 2 l/min 2 l/min

Service

Marel offers a range of service solutions to prevent failures, maximize performance or in case of unexpected breakdowns remote or onsite assistance.

Marel has offices in 30 countries across all regions, and a global network of highly skilled professionals that provide remote as well as onsite service support. We provide quality spare parts and customized service agreements for our customers to ensure optimal performance of Marel equipment.
