Unbeatable control over crumb distribution for uniformly coated products

  • Optimal control of top and bottom coverage
  • Attractive and consistent products
  • Suitable for vulnerable and coarse crumbs
  • High line speeds, up to 25 m/min

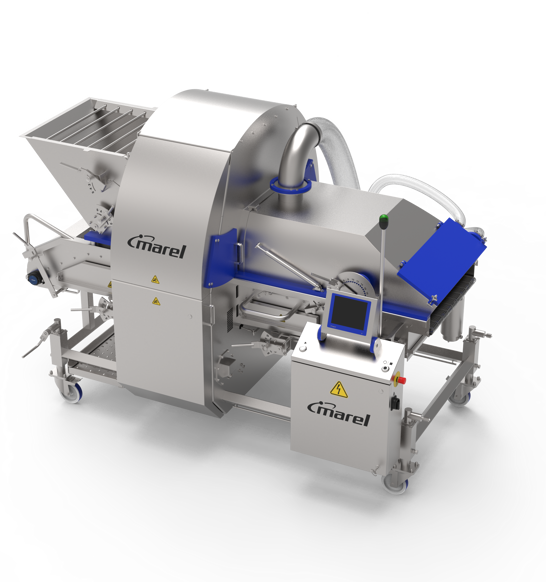

The RevoCrumb produces perfectly coated products with optimum crumb distribution over all sides of the product. Due to the innovative crumb management system, it is possible to control the flow of coarse and fine crumbs to the top or bottom bed. This ensures optimum coverage that always meets your requirements.

The RevoCrumb features a revolutionary transport mechanism consisting of a revolving water wheel that carefully transports the crumb. The structure of the crumb remains intact during processing, as the RevoCrumb does not grind or crush crumbs, which makes it particularly suitable for vulnerable crumbs such as coarse panko or cornflakes.

This Marel coating machine can be equipped with Innova software, which enables processors to maximize yield and throughput, while complying with quality standards and ensuring food safety.


Marel coating equipment is available with various belt widths (600, 700 and 1,000 mm) to suit a wide range of requirements.


Digitalization of the coating process with Innova Food Processing Software prevents operators from making mistakes and creates a paperless working environment.

The Innova QC module automates quality control procedures. The Line Profiler configures the required line set-up per master recipe and sends the programmed settings to the machines.

Together with the Recipe Manager module, Innova’s traceability engine can track systematically what has been made, when, where and by whom. Recipe Manager calculates the right amount of ingredients and knows what line set-up is needed to make the desired product, with the same settings as before, resulting in a consistent end product.

This Marel coating machine can be equipped with Innova Food Processing Software that enables processors to maximize yield and throughput, while complying with quality standards and ensuring food safety.


Cyclone for your clean production

The powerful vacuum easily attaches to the RevoCrumb, drawing excess coating directly from the machine to ensure a dust-free environment. The hygienic system means left over crumbs, flakes or flour can be collected in the Cyclone. Accessory is available to suit 600, 700 and 1000 mm machine widths.

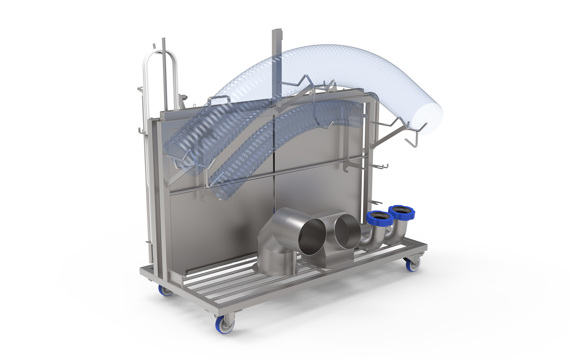

Tool Cart for a streamlined cleaning process

The Tool Cart accessory serves as a handy companion during equipment cleaning and maintenance. Made from durable stainless steel and equipped with convenient hooks and wheels, it provides an organized place to keep machine parts and tools during disassembly. By storing components in one place, the cart ensures everything is secure and within reach. Add the Tool Cart accessory for a streamlined cleaning process and a clutter-free workspace.

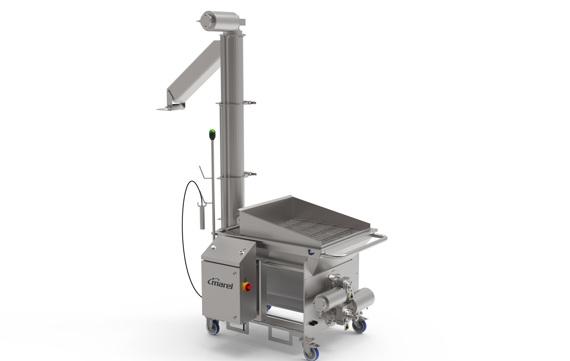

CrumbFeeder for increased coating efficiency and ergonomics

CrumbFeeder increases efficiency on the coating line in a simple, ergonomic and labor-efficient way.

Operators add several bags of coating material to the CrumbFeeder at an ergonomically safe height, with the feeder bringing up the material as it's needed. A sensor in the machine's bunker gives a signal when the level is low, so it's easy to monitor when additional material needs to be added.

By automatically bringing up coating material and alerting when the level is low, the CrumbFeeder reduces the demands on labor to free operators to manage several machines while keeping the line running.


Marel offers a range of service solutions to prevent failures, maximize performance or in case of unexpected breakdowns remote or onsite assistance.

Marel has offices in 30 countries across all regions, and a global network of highly skilled professionals that provide remote as well as onsite service support. We provide quality spare parts and customized service agreements for our customers to ensure optimal performance of Marel equipment.
